Installation Developed Countries

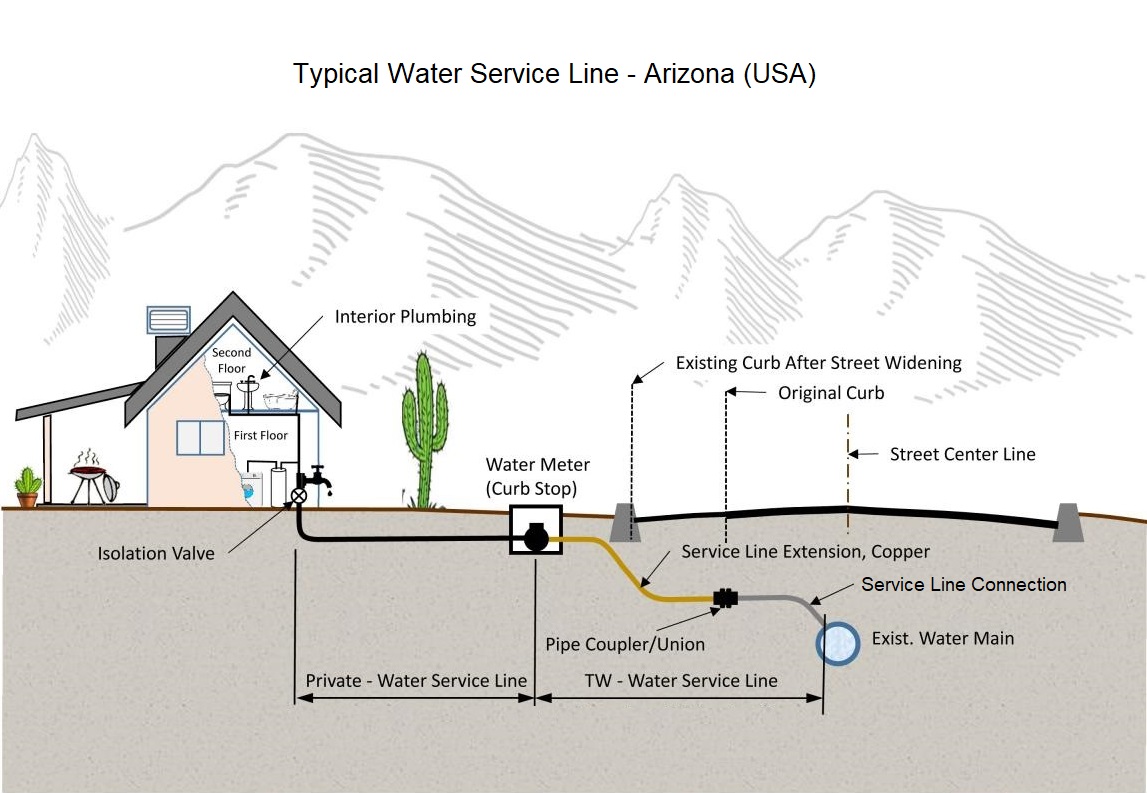

GTLO_Service_Line_Graphic_Fig_1 watrwise edit

— Photo Credit – Tucson Water

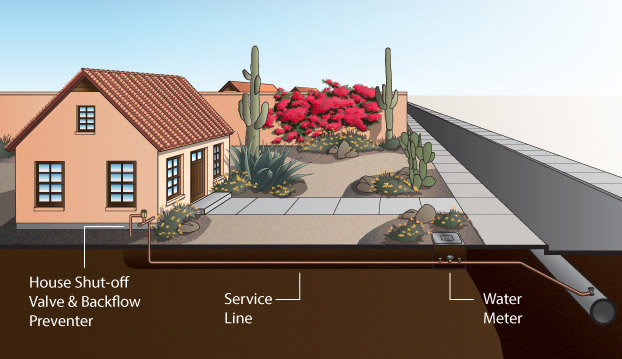

pic_find_water_meter
— Photo Credit – Smart Home Water Guide

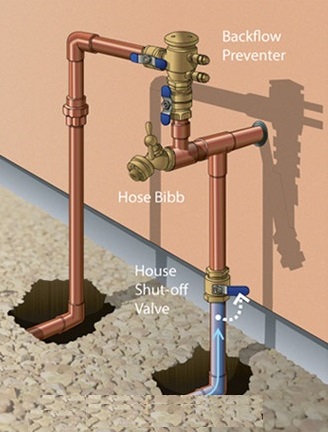

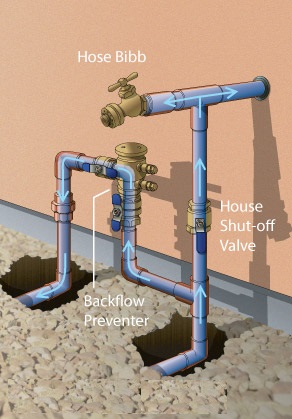

Cycle Valve should be installed before irrigation backflow preventer (see pictures). Protect the cycle valve from freezing if installed outdoors.

EWS house plumbing
Ews Plumbing -with pressure regulator

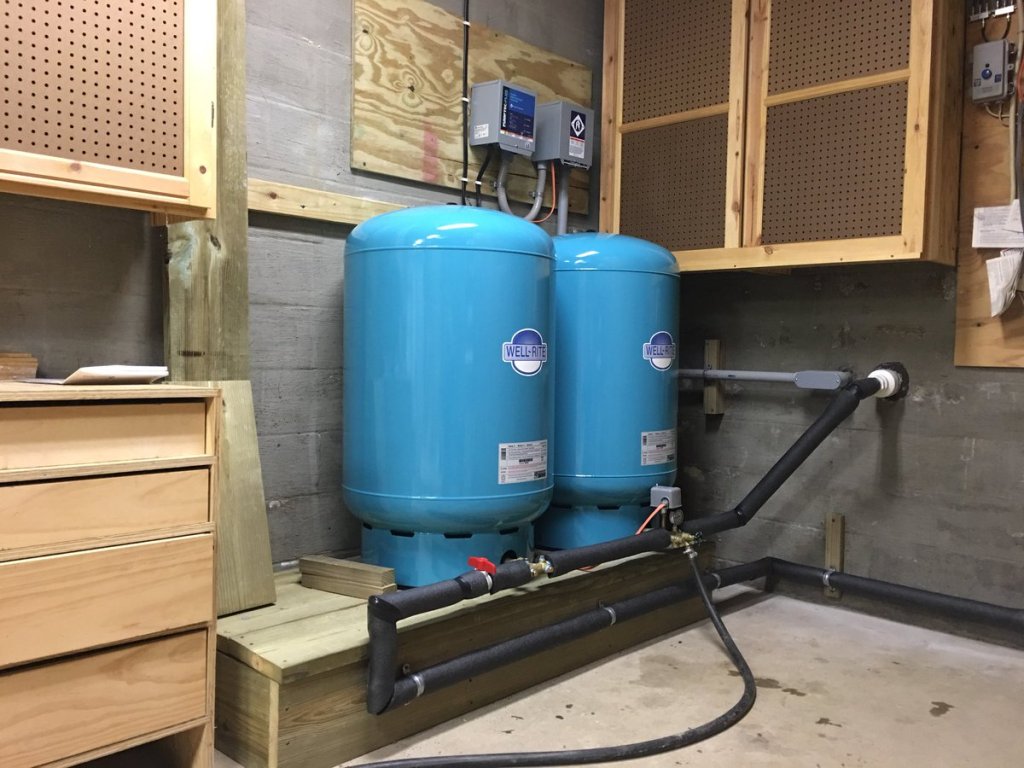

Pressure tanks may be installed in any configuration as long as you follow basic rules.

Pressure Tank(s), Cycle Valve, Check Valve and Isolation Valve are required.

Rules to follow are:

Remember there is no adjacent pump (no pressure switch)! Water and pressure supplied by Water Supply.

Make sure pressure tank air charge is the same for all pressure tanks.

Pressure tanks (empty, no water) air charge pressure should be two PSI less than the cycle valve pressure setting. Pressure tank 38 PSI, Cycle Valve 40 PSI – for example. Check pressure with tire (shrader valve) gauge.

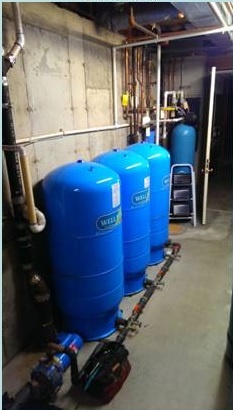

No other items plumbed between multiple pressure tanks. Only pressure tanks, manifolded together.

Options for differing situations will consider water supply pressure and water supply capacity. WatrWise™ Storage reserves water for you, supplying water during peak demand, emergency demand and service or supply interruptions; lowering water demand challenges for water systems.
Water is cycled (replaced) every time you use water reducing incidence of stagnation.
